DL-POW1 DC16V DIN Rail DALI Bus Power Supply 4W Max 250mA LED Transformer for RGB CCT LED Downlight
DL-POW1 DC16V DIN Rail DALI Bus Power Supply 4W Max 250mA LED Transformer for RGB CCT LED Downlight
Regular price
$28.75 USD
Regular price
Sale price
$28.75 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product parameters:

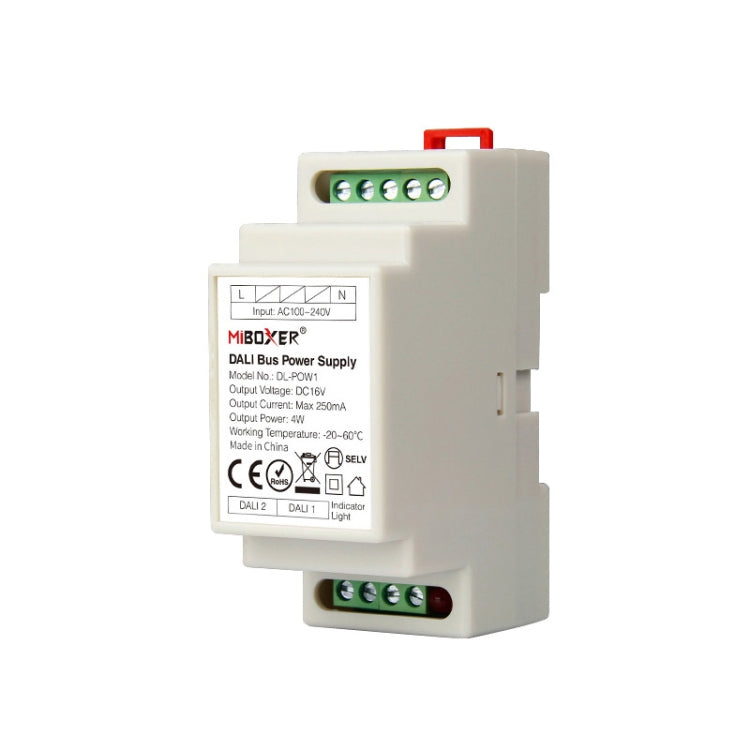

1. Product name: DALI bus power supply (DIN rail)
2. Model: DL-POW1
3. Input voltage: AC100~240V 50 / 60Hz
4. Input current: 115Vac /≤0.09A, 230Vac /≤0.05A
5. Leakage current: <0.5mA / 230Vac
6. Inrush current: 10A cold start at 230Vac
7. Set-up time: 115Vac <2500ms, 230Vac <1500ms (full load)
8. Output voltage: DC16V
9. Output current: maximum 250mA
10. Highest rated power: 4W
11. Ripple and noise: 0.2Vp-p (full load)
12. Working temperature: -20~60 degrees Celsius
13. Working humidity: 20~95%RH, no condensation
1. Product name: DALI bus power supply (DIN rail)
2. Model: DL-POW1
3. Input voltage: AC100~240V 50 / 60Hz
4. Input current: 115Vac /≤0.09A, 230Vac /≤0.05A
5. Leakage current: <0.5mA / 230Vac
6. Inrush current: 10A cold start at 230Vac
7. Set-up time: 115Vac <2500ms, 230Vac <1500ms (full load)
8. Output voltage: DC16V
9. Output current: maximum 250mA
10. Highest rated power: 4W
11. Ripple and noise: 0.2Vp-p (full load)
12. Working temperature: -20~60 degrees Celsius
13. Working humidity: 20~95%RH, no condensation
